Bodycraft Connect-22 Android Touchscreen

MSRP $1,499.00
MSRP $1,499.00 - MSRP $1,499.00
MSRP $1,499.00
Current price $1,299.00
$1,299.00 - $1,299.00
Current price $1,299.00
On Display in Clearwater Showroom
Good to Know
Delivery & Installation avalable in the Tampa Bay Area

Questions? Speak to an actual human!
727.573.5500 | Email | Visit

Product Info

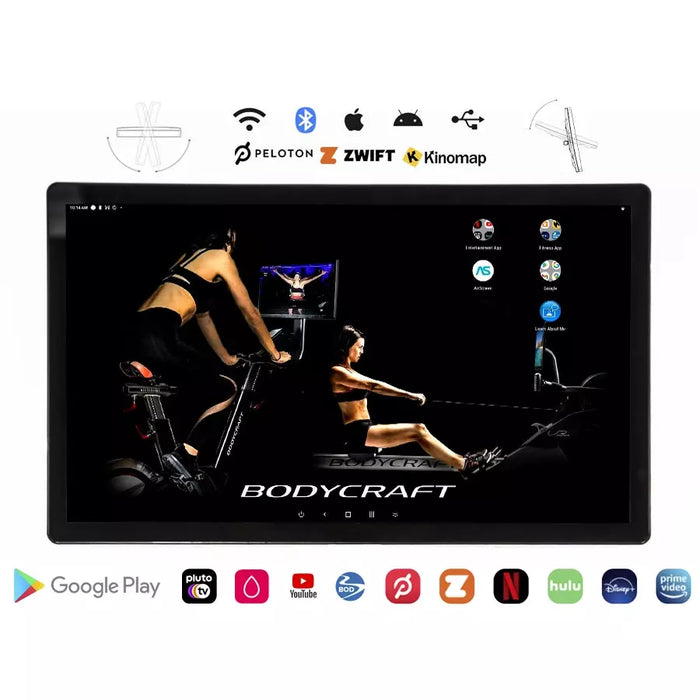

Introducing the Connect-22 Android Touchscreen from Bodycraft! This 22-inch display is the perfect addition to your Bodycraft machine, allowing you to fully immerse yourself in your workout routine. With its open platform, you can choose your own immersive experience by streaming your favorite videos, accessing your favorite fitness apps, and downloading any app from the Google Play Store.

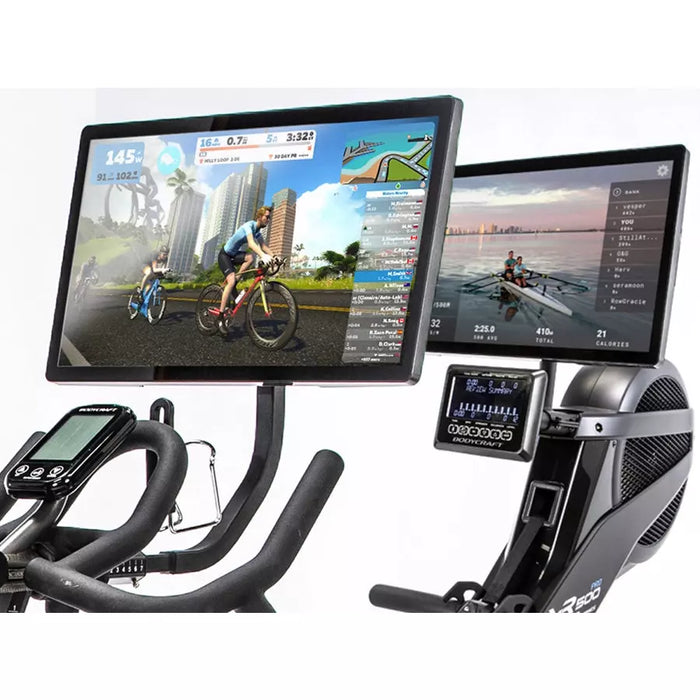

But that's not all! The Connect-22 is compatible with Bodycraft's 1000 series of cardio products, indoor cycles, rowing machines, and HFT Pro, and it can be retrofitted to most Bodycraft fitness products, such as treadmills, ellipticals, indoor cycles, and bikes.

The Connect-22 is a fully open platform tablet that requires no subscription, giving you the freedom to choose between free content or paid apps. It comes with pre-installed entertainment and fitness apps, and you can customize and download additional apps from the Google Play Store. Plus, with wireless mirroring with your phone or tablet, you can easily track your progress and stay connected with your fitness community of choice.


Connect-22 Features:

  • You choose your experience – the fully open-platform Android tablet will deliver the experience of your choosing, from the most popular group exercise apps to free virtual scenery, streaming your favorite shows, and social media.
  • You choose your workout – download your favorite entertainment or fitness app.
  • Hundreds of free virtual scenery, virtual training, and fitness videos on YouTube app.
  • Functions like any Android-based device. • Initial walk-through set up screens.
  • Pre-loaded with Google, fitness, and entertainment apps. The only GMS certified 22” Android tablet available – (The GMS certification is Google’s stamp of approval that a device meets all the specifications and requirements recommended by Google)
  • Bluetooth audio.
  • Internal speakers.
  • Google Play store. • Connect to fitness apps with dual pro sensor (indoor cycles).
  • Connects to fitness apps with VR500-PRO (Rower-RW56 CONSOLE).
  • Multi-user login (can have multiple Google accounts).
  • Game-changing immersive experience.
  • Unlimited fitness and entertainment experiences.
  • Wireless screen mirroring – Apple and Android phones and tablets.
  • Tablet adjustability: 180 rotation and 180 degree tilting (indoor cycle and rower brackets only).
  • Inputs include LAN, HDMI Out, USB 3.0, Micro SD slot, USB 3.0 Type C.


Connect-22 Compatible Products:

  • Current Production 1000 Series
    • T1000 EXP Series (will connect to data sharing fitness apps).
    • R1000.
    • U1000.
    • E1000.
    • E1200.

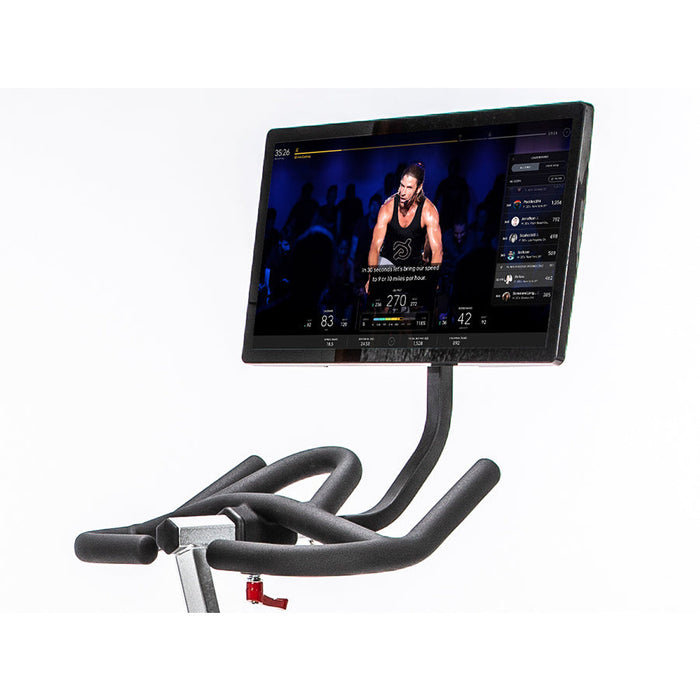

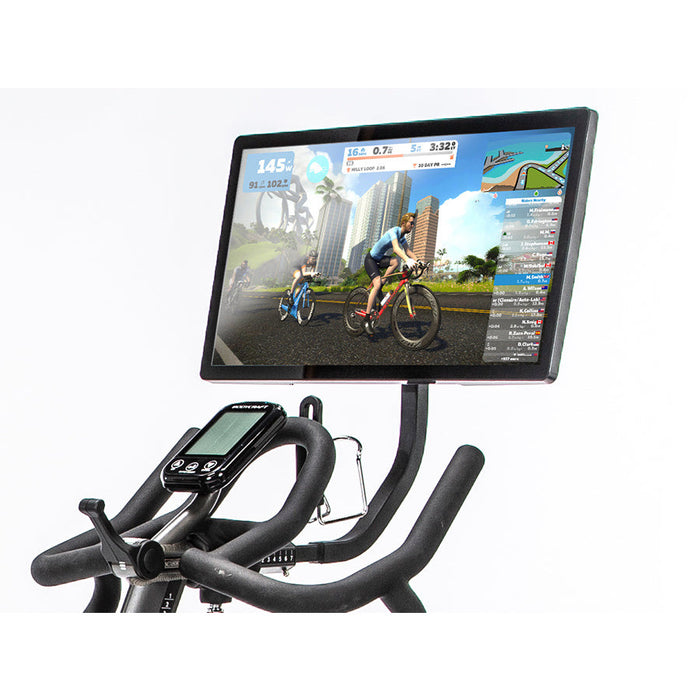

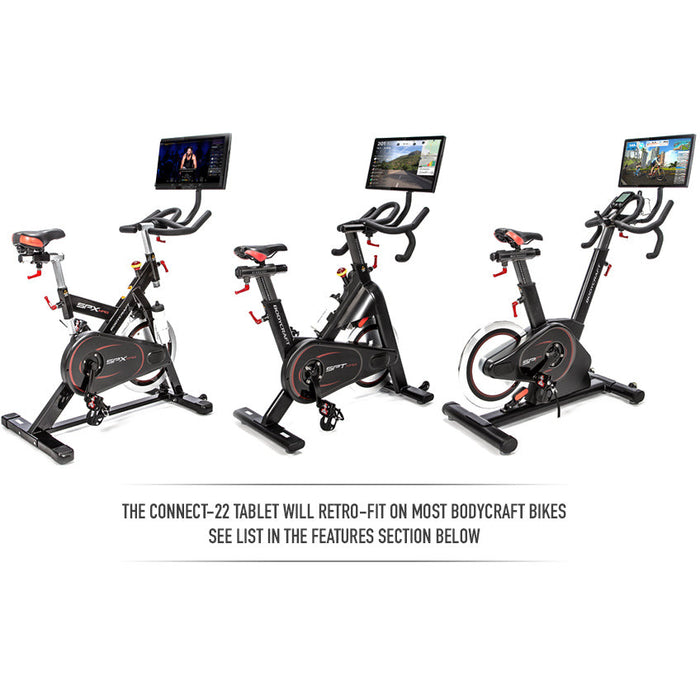

  • Current Production Indoor Cycles *(will need optional dual pro sensor to connect to data sharing fitness apps)
    • SPX-Mag.
    • SPT-Mag.
    • SPR.
  • Compatible Discontinued Indoor Cycles *(will need optional dual pro sensor to connect to data sharing fitness apps)
    • SPX.
    • SPM.
    • SPL.
    • SPT-V2 (production of the SPT-V2 began 12/2013).
    • Will not work with the original SPT (with the “gun slide” HB adjustment).
    • If your SPT starts with the serial number HJ – 1st version, not compatible.

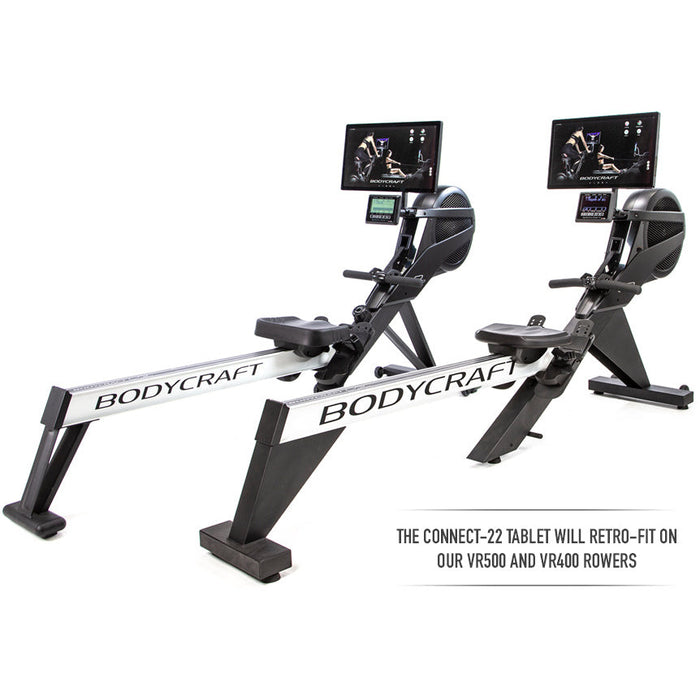

  • Current Production Indoor Rowers
    • VR500-PRO (ships with RW56 console and is compatible with data sharing fitness apps).
    • VR400 (not data sharing app compatible).
  • Compatible Discontinued Indoor Rowers
    • VR500 (not data sharing app compatible).
  • Current Production Functional Trainer
    • HFT PRO.


  • Processor: Rockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
  • System Memory: 4GB LPDDR4
  • Storage Device: 32GB eMMC
  • Size / Resolution: 22” TFT LCD / 1920 x 1080
  • Touch Screen: Projected Capacitive Touch
  • USB Port: 1 x USB 3.0 Type A, 1 x USB 3.0 Type C
  • LAN Port: 1 x RJ45 Giga LAN
  • Power Input: 1 x DC in 12V/4.16A 2 pin
  • SD Slot: 1 x Micro SD Slot (SDHC 2.0 support)
  • Video Port (OUTPUT): 1 x HDMI (1080p60 support)
  • System: Android 9.0 – GMS CERTIFIED
  • Certifications: CE, FCC, LVD, UL, RoHS


12 Months Warranty against defects and in workmanship and materials.
