SKU UB521M

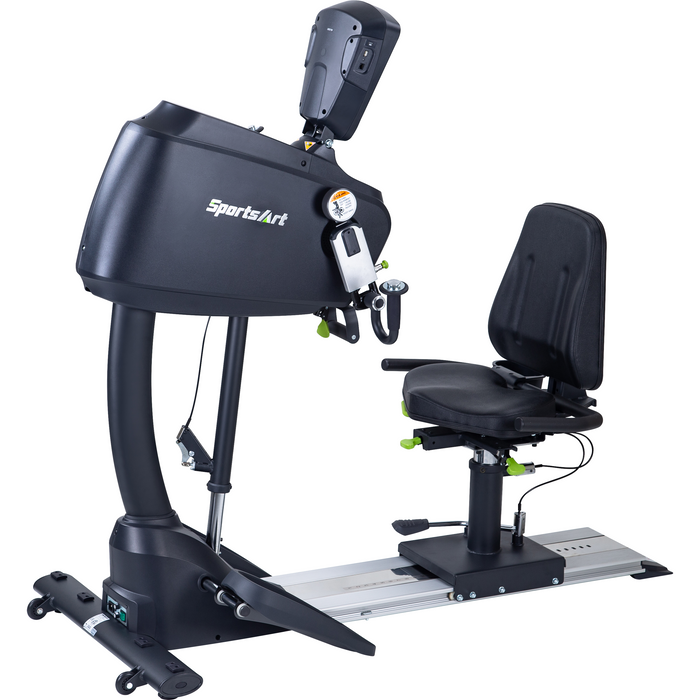

SportsArt UB521M Bilateral Upper Body Ergometer with Bilateral arm frame and ADJ Swivel Seat

Pro Installation in Tampa Bay
Call (727) 573-5500 or email for custom quote!
Download Spec Sheet

Special Order Unit

Products that are Special Order require a dedicated quote. Ususally that's because they require more in-depth installations, are only designed for commercial use, or have geographic restrictions applied by the manufacturer.

Either call (727) 573-5500 or hit the button above and we'll get you all the info you need as quickly as we can!

Product Info

SportsArt is an industry leader in rehabilitative equipment manufacturing and the UB521M Upper Body Ergometer is a therapist’s favorite modality for seated, standing or users needing wheelchair access.

  • Bi-directional resistance for varied exercise and therapy sessions.
  • Optional wheelchair ramp and seat
  • Hand crank position rotates 180° for opposing or in-unison arm motion (optional function.)
  • Roll away seat carriage for wheelchair patients and optional wheelchair platform.
  • Adjustable ROM radius with 4 settings at 6.5, 7.5 8.5 and 9.5 inches (16.5, 19, 21.5, 24 cm).
  • Belt drive offers quiet, smooth operation with seamless transition between forward and reverse motion.

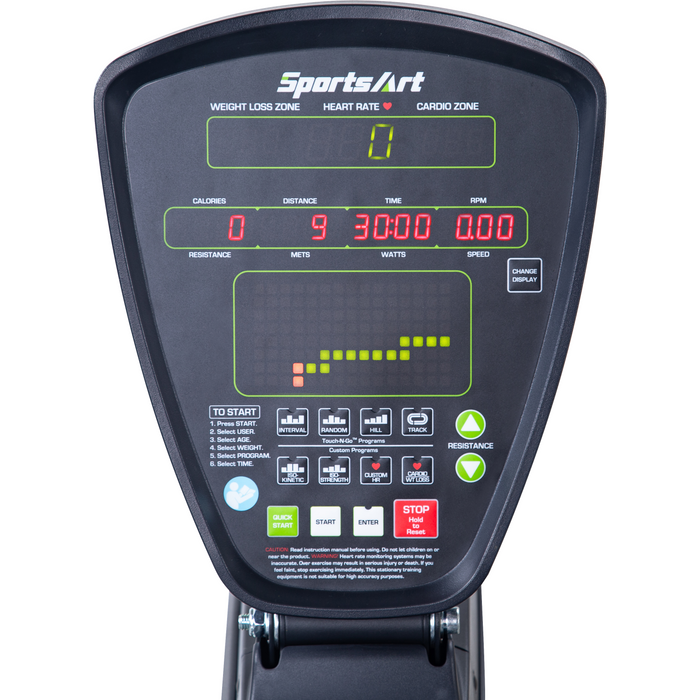

  • Tilting console and pivoting display offer customized fit for most users in seated or standing position.
  • Optional swivel seat and bi-directional handles (in-unison arm motion)
  • Optional wheelchair ramp
  • Optional wheelchair tie down
  • Optional grip assist gloves

Specifications

Unit Weight
Adjustable Seat: 59.4 lbs / 27 kg, Fixed Seat: 55 lbs / 25 kg, Swivel Seat: 70.4 lbs / 32 kg, Unit: 193.6 lbs / 88 kg, Wheelchair Ramp: 68.2 lbs / 31 kg

Dimensions (L x W x H)
69.3 x 31.5 x 75 in / 176 x 80 x 190.5 cm

Resistance
20 by 0.1 increments

Power Requirement
15A, 120V AC, grounded

Max User Weight
500 lbs / 227.3 kg

Read Outs
Workout Level, Calories, Time, RPM, Distance, METS, WATTS, Speed

Workout Programs
Custom Interval, Random, Hill, Track, Iso Kinetic, Iso Strength, Custom HR, Cardio/Weight Loss, Custom HR, ActivZone™

Tech Specs
15A 120V AC, grounded

Warranty

Type Full Commercial - no usage limit
Frame Lifetime**
Parts 5 Years
Labor 3 Years
Wear Items 5 Years

**PRODUCT LIFETIME IS 7 YEARS
