SKU FUS-4-FO

Batca Fusion 4 Modular Gym System

Pro Installation in Tampa Bay
Call (727) 573-5500 or email for custom quote!
Download Spec Sheet

Special Order Unit

Products that are Special Order require a dedicated quote. Ususally that's because they require more in-depth installations, are only designed for commercial use, or have geographic restrictions applied by the manufacturer.

Either call (727) 573-5500 or hit the button above and we'll get you all the info you need as quickly as we can!

Product Info

The Batca Fusion System is an advanced fitness system designed to provide a limitless exercise experience with modern styling and unrivaled versatility. The system is made of high-quality materials and features a carbon edition with elegant architecture and modern styling, making it not only the most attractive choice but also the most efficient fitness system on the market.

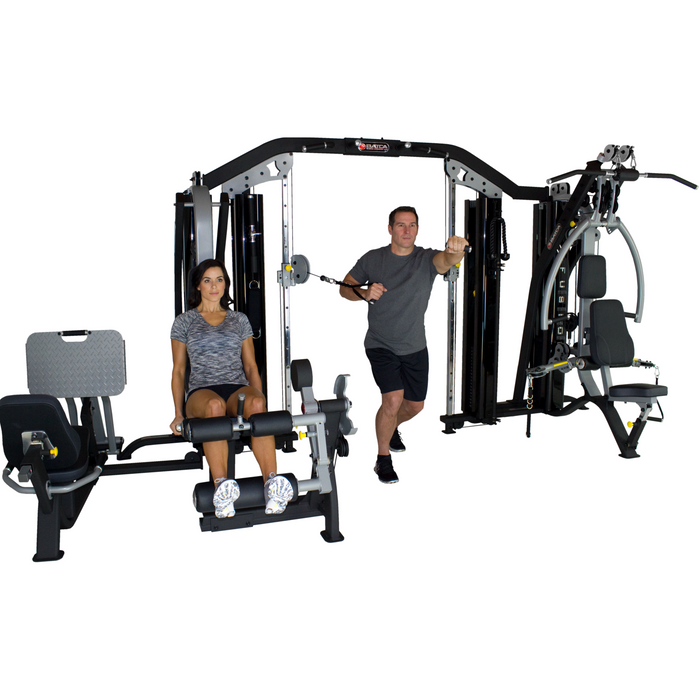

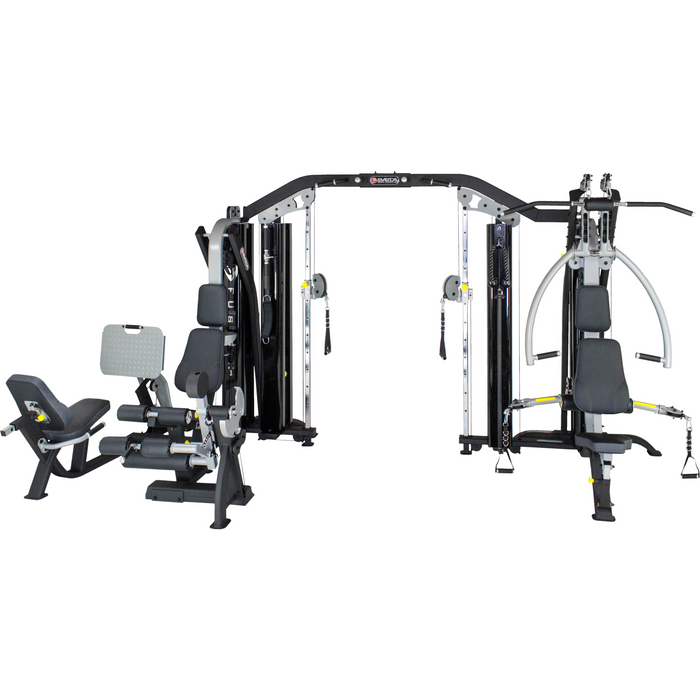

The Fusion 4 is the central unit of the Batca Fusion System, and it offers unparalleled versatility and adaptability, allowing users to perform all exercises from the front to the back of the gym. The system also features a modular design, making it easy to place and adjust the units for optimal use.

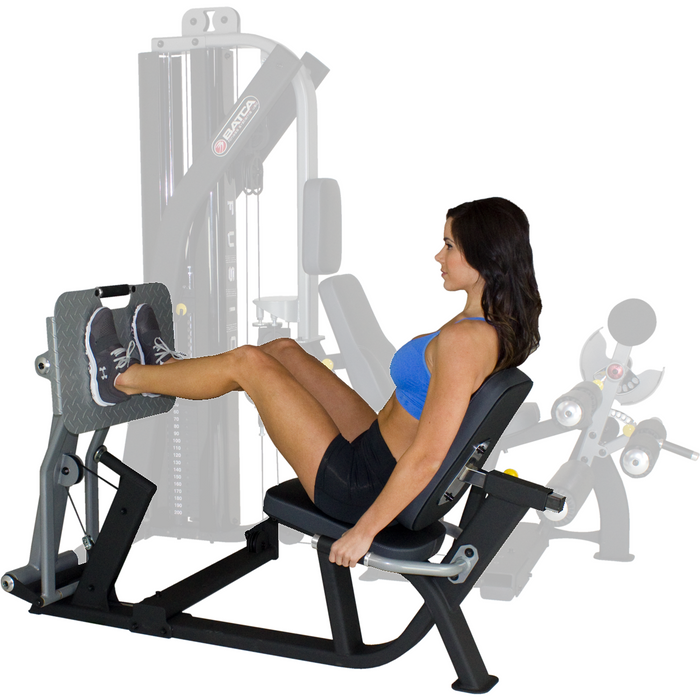

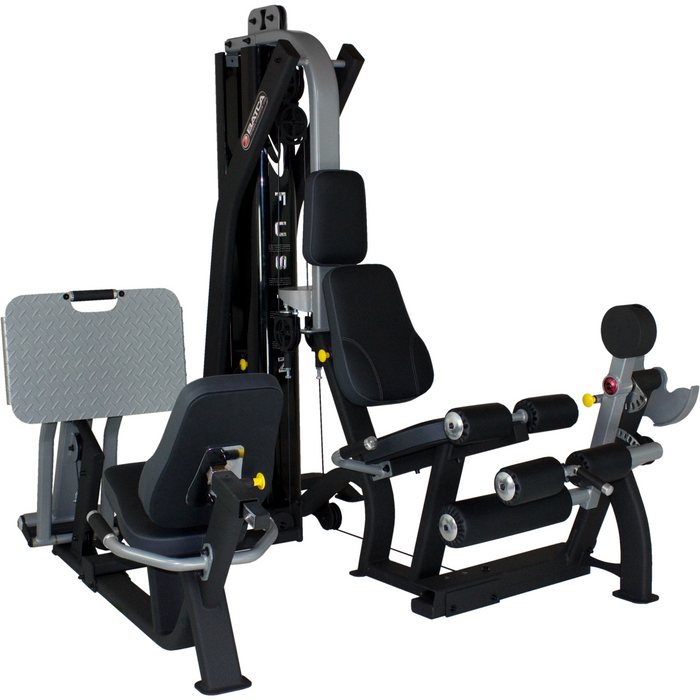

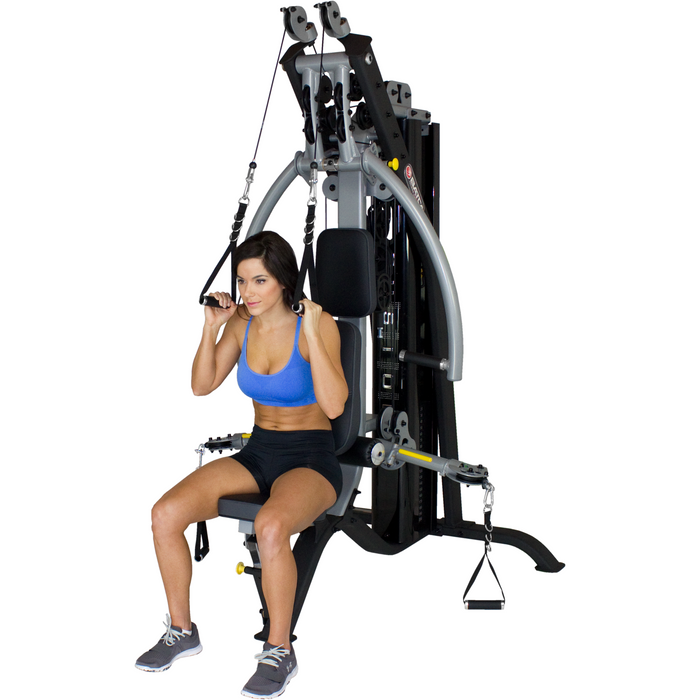

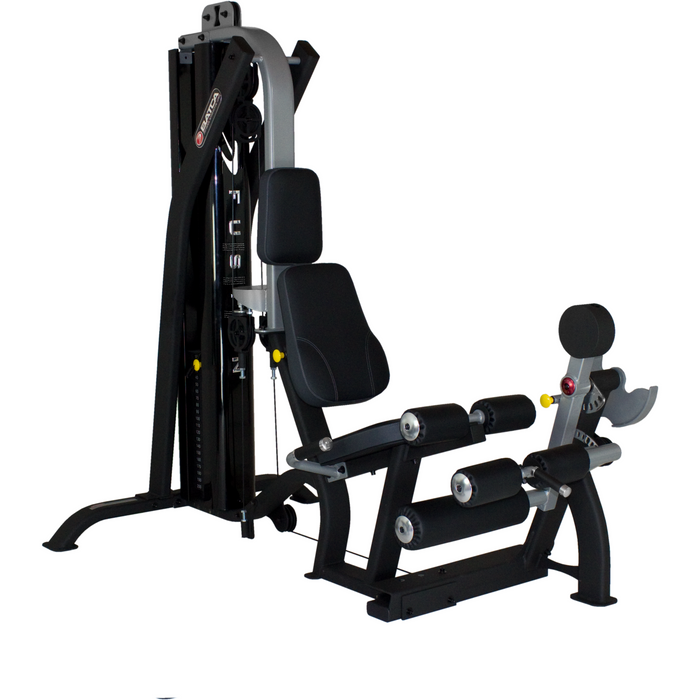

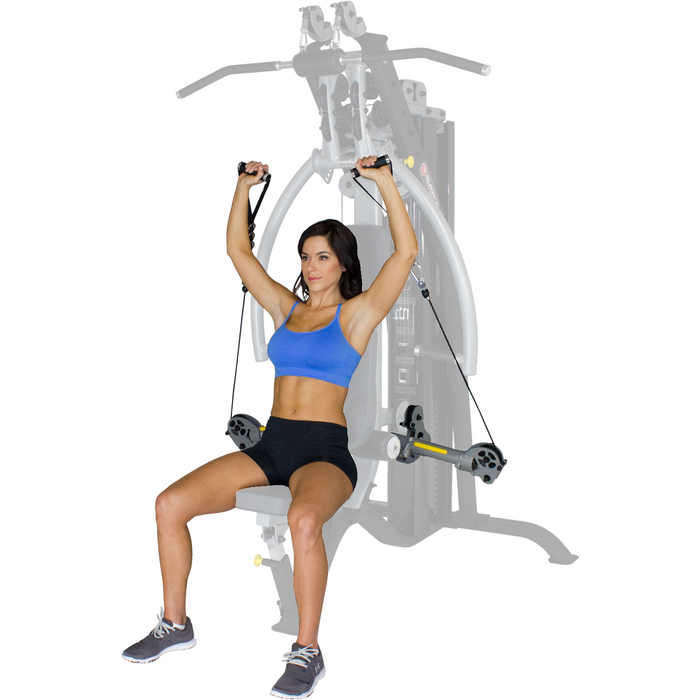

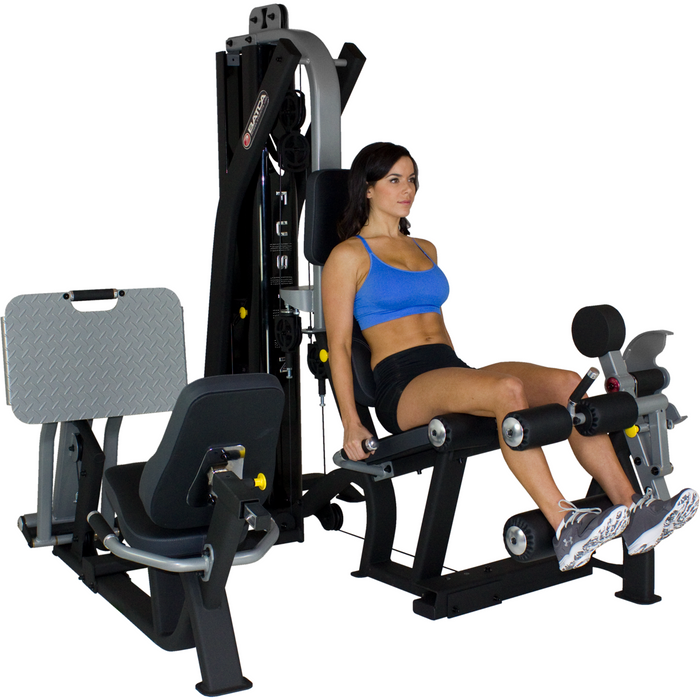

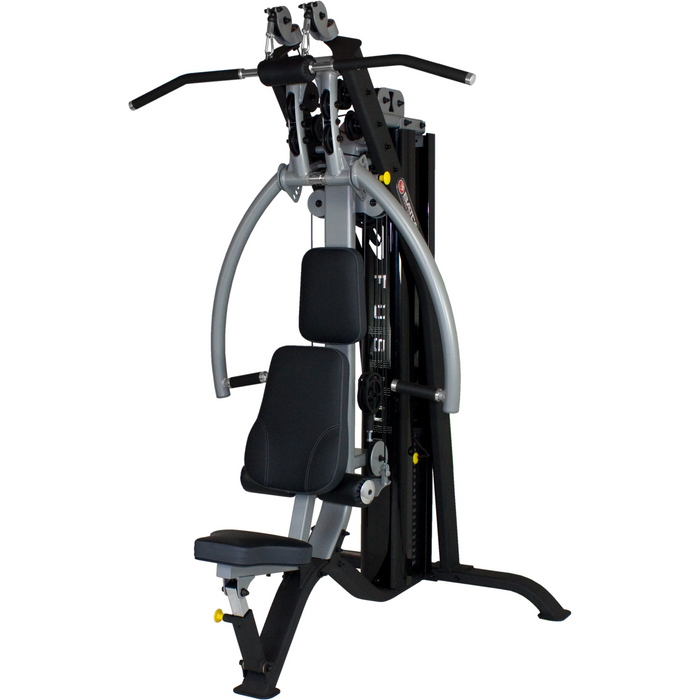

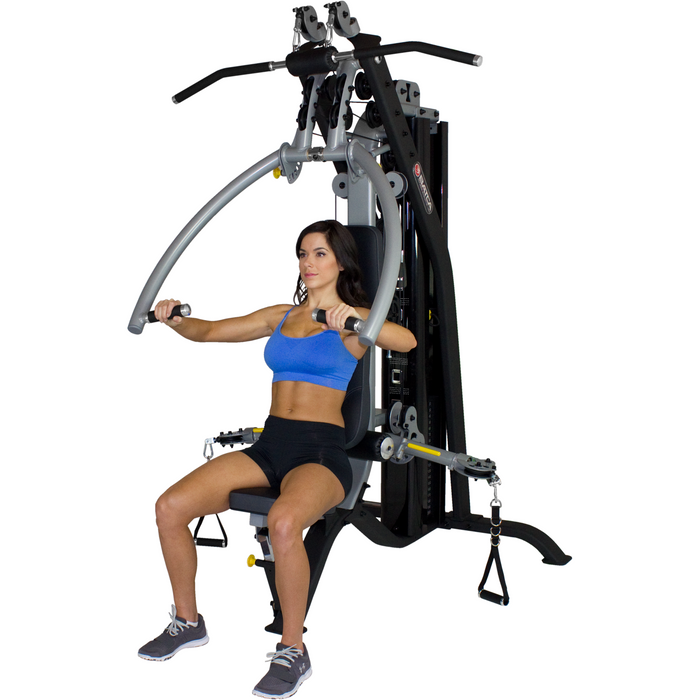

The Batca Fusion System includes several units, such as the FZ-1 Upper Body Unit, which features dual swiveling high pulleys and multi-press arms, allowing users to perform various exercises, including chest press, incline/decline press, and chest-supported mid-row. The FZ-3 Lower Body Unit offers seated leg curl/leg extension with patented knee alignment pads, contoured and telescoping back pad, eight starting point adjustments, and a counterbalanced exercise arm. The FZ-4 Leg Press/Calf Raise Unit has a walkthrough frame design, a large footplate, and a four-bar linkage with a 2:1 weight ratio.

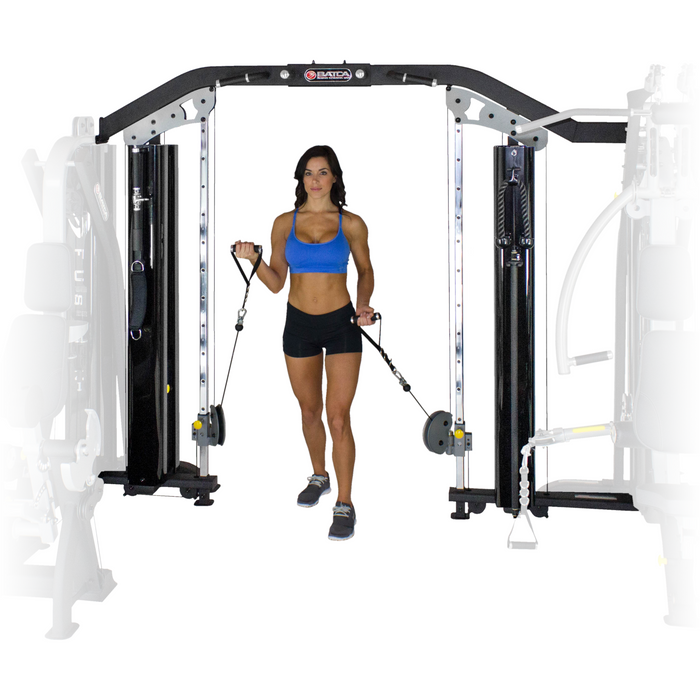

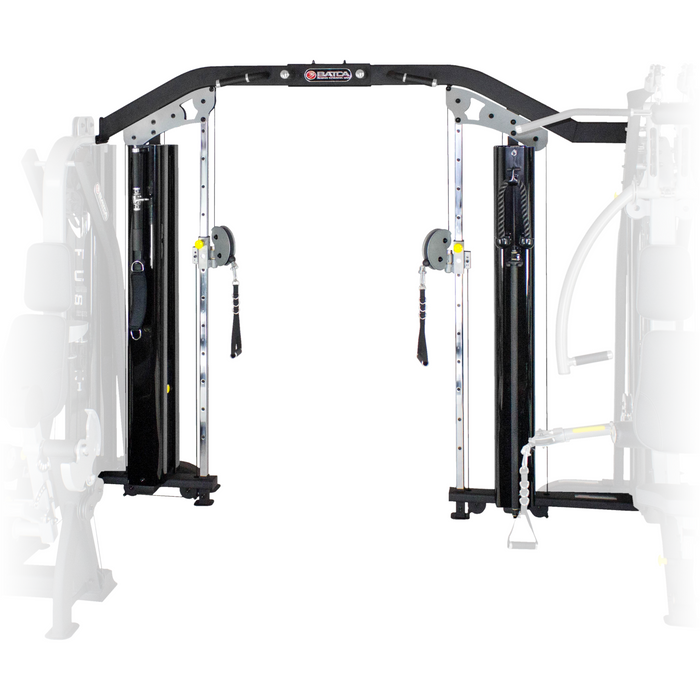

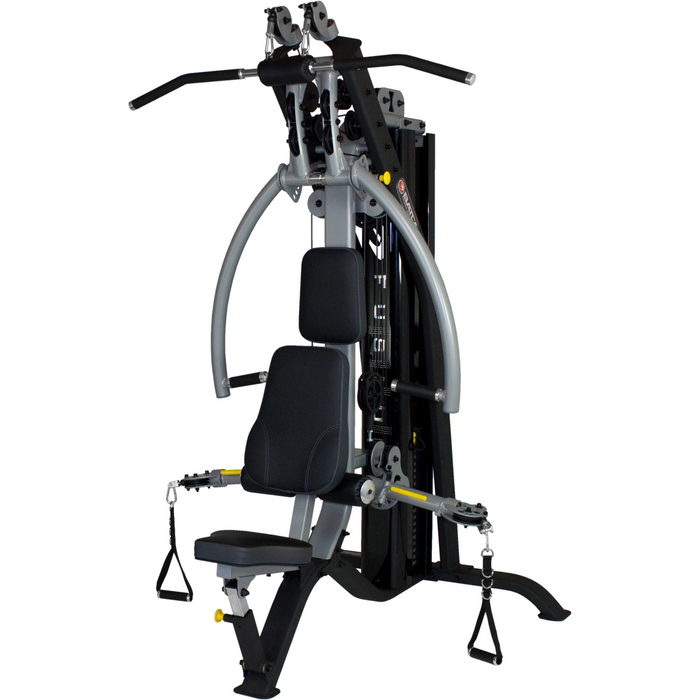

The Batca Fusion System also includes the FZ-5 Functional Trainer, which offers adjustable dual pulleys for limitless free cable exercises and adjustable dual high/low swivel pulleys for bar exercises. The FZ-5 also features chin-up bars with wide and neutral grips and optional FZ-2 cable arms, providing additional exercise options.

The total weight of the complete Batca Fusion System is 2,051lbs, with the FZ-5 requiring support from the FZ-1 and FZ-3 units. Optional accessories, such as the FZ-4 Leg Press and the FZ-6 F.I.D. Bench, are available for users to customize their workout experience.

Specifications

Frame:

  • Link/Omega Series: 2” x 4” and 1-1/2” x 3” 11 gauge (.120 wall) structural steel tube with 3/8” and 1/4” thick steel plate
  • Fusion/FZ Series: 1-3/4" x 4" flat oval tube with 3/8" and 1/4" thick steel plate
  • Mounting plates with rubber feet protect floor and prevent the machine from sliding
  • Frame tubes are bent with the use of an inside mandrel or cut and mig welded to ensure maximum structural integrity

Finish:

  • Abrasive blasted and/or chemically treated frames are electrostatically powder coated ensuring maximum adhesion and durability

Pivot Points:

  • Sealed bearings and oil impregnated bronze bushings operate on solid shafts to ensure a smooth movement and tight fit

Cams:

  • Laser cut from 3/8” steel plate and offer starting point adjustment on applicable machines

Weight Stack:

  • Precision machined solid steel weight plates with individual bushings travel on solid, chromed, guide rods to ensure ultra smooth operation
  • Heavy rubber suspension bumpers are used to absorb and reduce shock

Foot Platforms:

  • 3/16” thick powder coated steel diamond plate to avoid slipping

Pulleys:

  • Glass reinforced nylon operating on precision steel ball bearings

Cables:

  • Nylon coated, lubricated, mil. spec. cable
  • 2000 lb. tensile strength
  • Pivoting cable ends with oil-impregnated bronze bushings promote long cable life

Upholstery:

  • Contoured pads with lumbar support make a comfortable and well supported workout
  • Pads are double stitched and handcrafted from the finest materials available

Seat adjustments:

  • Adjustable seats are gas assisted
  • All telescoping pad adjustments use nylon sleeves to make Batca seat adjustments smooth and effortless

Shroud:

  • Formed and powder coated steel weight stack guard is standard

Handgrips:

  • Ergonomically molded handgrips provide a comfortable, and non-absorbing grip.

Warranty

For Residential Use:

Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and workmanship under normal use and service for one year from date of purchase including paint, chrome, upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts, nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for three years after date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins for five years after date of purchase and warrants the frame and all welded parts for the lifetime of the original purchaser.

For Commercial Use:

Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and workmanship under normal use and service for six months from date of purchase including paint, chrome, upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts, nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for one year after date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins for three years after date of purchase and warrants the frame and all welded parts for ten years after date of purchase.

Full warranty details available on BatcaFitness.com
